Onplana D07 CDP19 1000-830 ET 01
Brand: Trilux
ONPLANA D07 CDP19 1000-830 ET 01, 6457540 TOC 6457540 EAN 4018242333219 Luminous efficacy 122 lm/W Luminaire luminous flux 1100 lm Connected load 9,00 W Colour temperature 3000 K Degree of protection IP40 Colour white Weight 1,7 kg 6 § 9 Design Awards
Share to :
Product Details

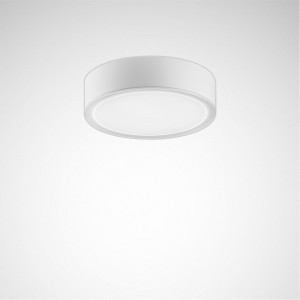

Luminaire typeRound surface-mounted LED downlight, Construction height 60 mm.
Applications
Prestigious surface-mounted LED downlight: Offices, Banks, Foyers, Corridors, Stairwells, Conference rooms, hotels, Restaurants, residential areas.
Mounting methods
For wall and ceiling mounting.
Optical system
With primary reflector highly efficient CDP microprismatics. With mainly direct light distribution. Decorative ceiling illumination also softens contrast on the ceiling. Glare rating according to UGR standard table method with rating < 19 with reflectance values 80/60/30. Harmonious light effect due to homogeneously illuminated light emission.
LED system
Luminaire luminous flux 1100 lm, connected load 9,00 W, Power Faktor λ > 0,9, luminous efficiency of luminaire 122 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM, Mean rated service life L80(tq 25 °C) = 70,000 h, mean rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020).
Luminaire body

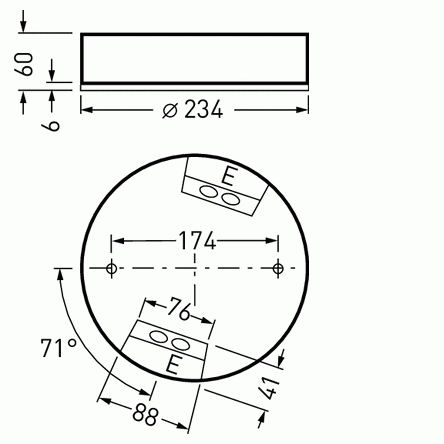

Luminaire body of die-cast aluminium. White structure-coated luminaire body (RAL 9016). External dimensions of ceiling ring Ø 234 mm, luminaire height 60 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP40, impact resistance level in accordance with IEC 62262: IK06, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 1,7 kg.
Electrical connection
With connection terminal to 2.5 mm, cable strain relief and mains through-wiring.
Electrical version
With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority.
TOC 6457540
Suitable for the following support programs*
BEG (GER), BMU (GER)
*No responsibility is taken for the correctness of this information. The applicant is responsible for verifying compliance with the requirements of the funding program.
